Step 1 - Planning the Roof

How to design with SolarEdge
String lengths

Take the max watts on a string below, then divide it by your panel wattage and round down.

Orientation is not cruicial with SolarEdge as you have an optimiser on every panel, so they all have their own MPPTs.

Remember you need a minimum of 6-8 optimisers+panels in light for the string to function well



Mounting Optimisers
CAUTION: Avoid the two most common mistakes when mounting DC optimisers.
  1. NEVER fix with a rattle gun/impact driver as they damage the optimiser - use a torque wrench or drill
  2. ALWAYS leave a gap between the optimiser and the rail, as per clearances, to allow heat dissipation
Introducing the S440 optimiser

S440 datasheet

S series Connections Application note

Step 2 - Commissioning with Setapp

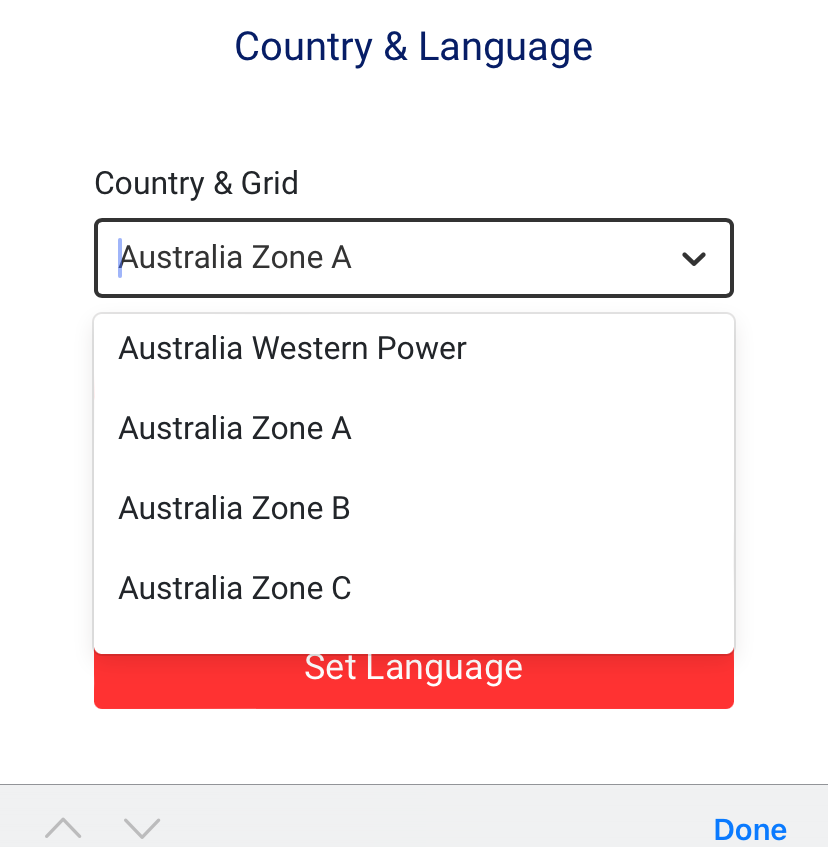

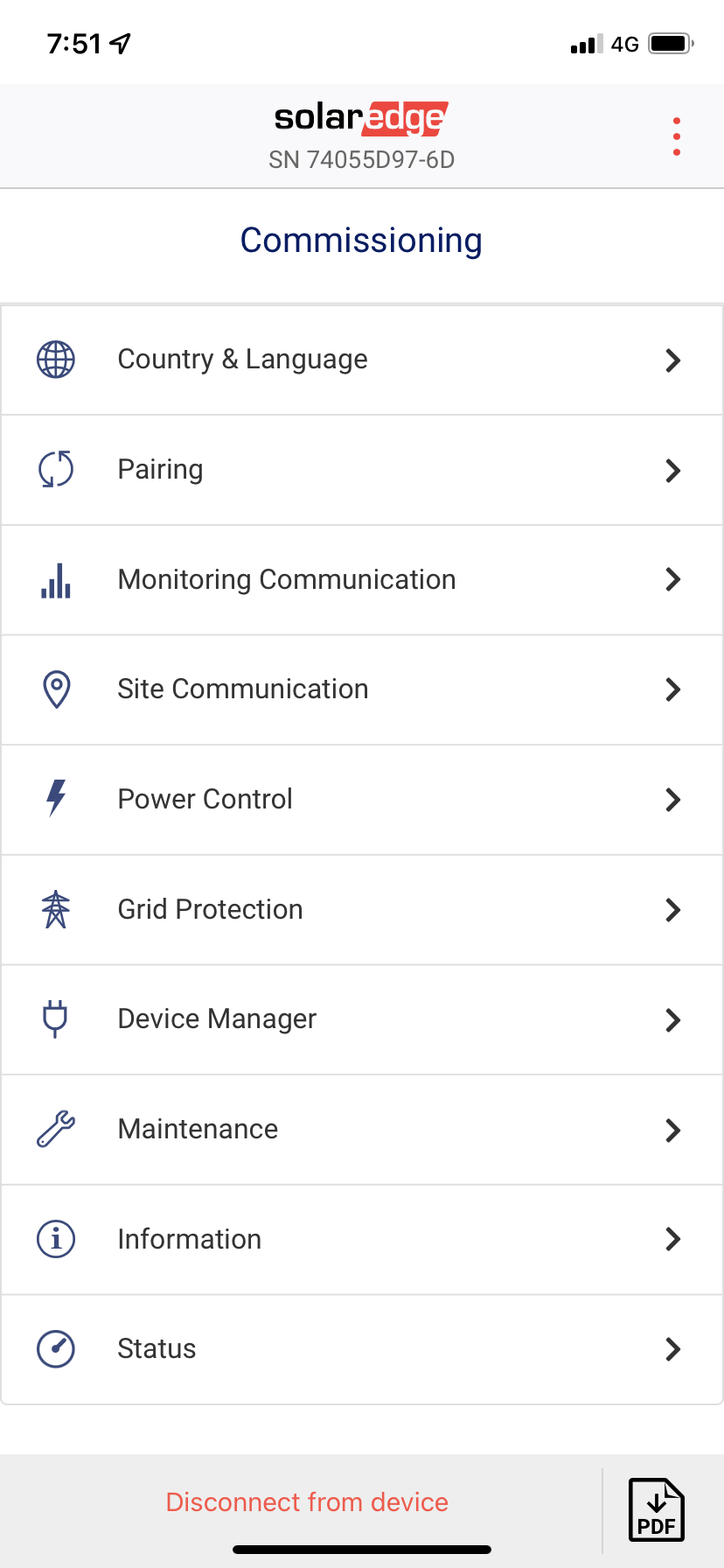

Set the Grid code to Region A in NSW/ACT/QLD/VIC

Country Grid Code

From Dec 18th 2021, under 4777.2:2020 inverters need to be commissioned to "Region A" for small grid connected systems in NSW/ACT/SA/QLD and VIC.

Do NOT leave them on the shipping default - "Australia".

image1aus

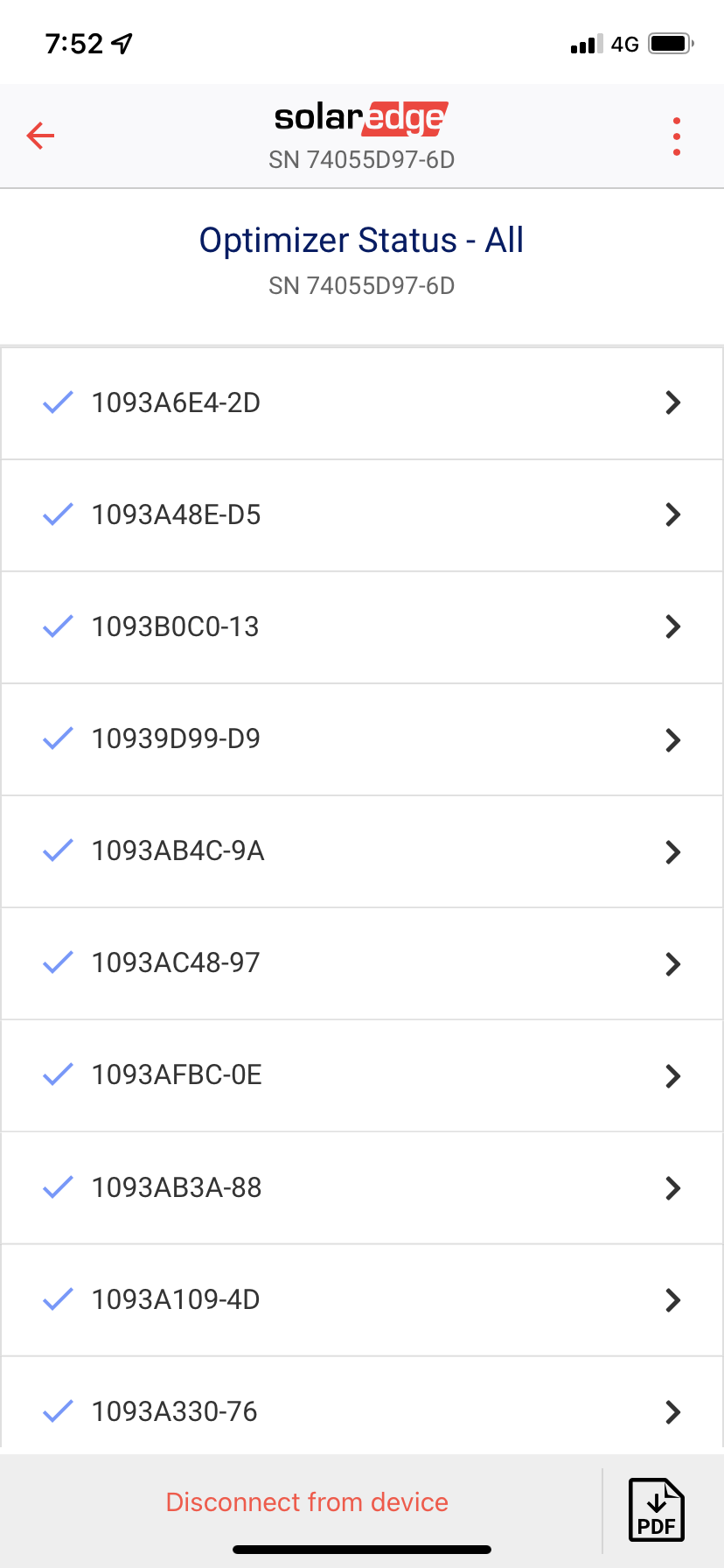

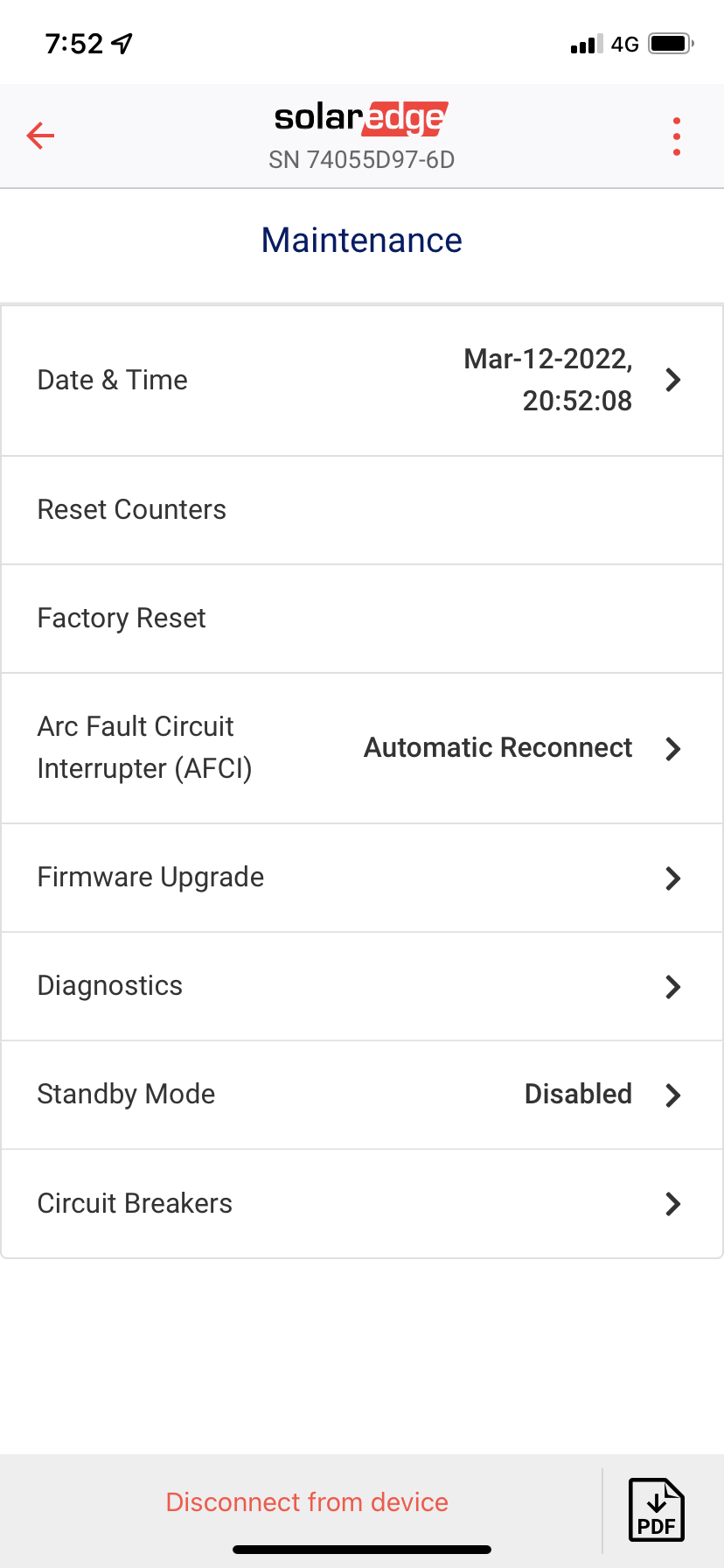

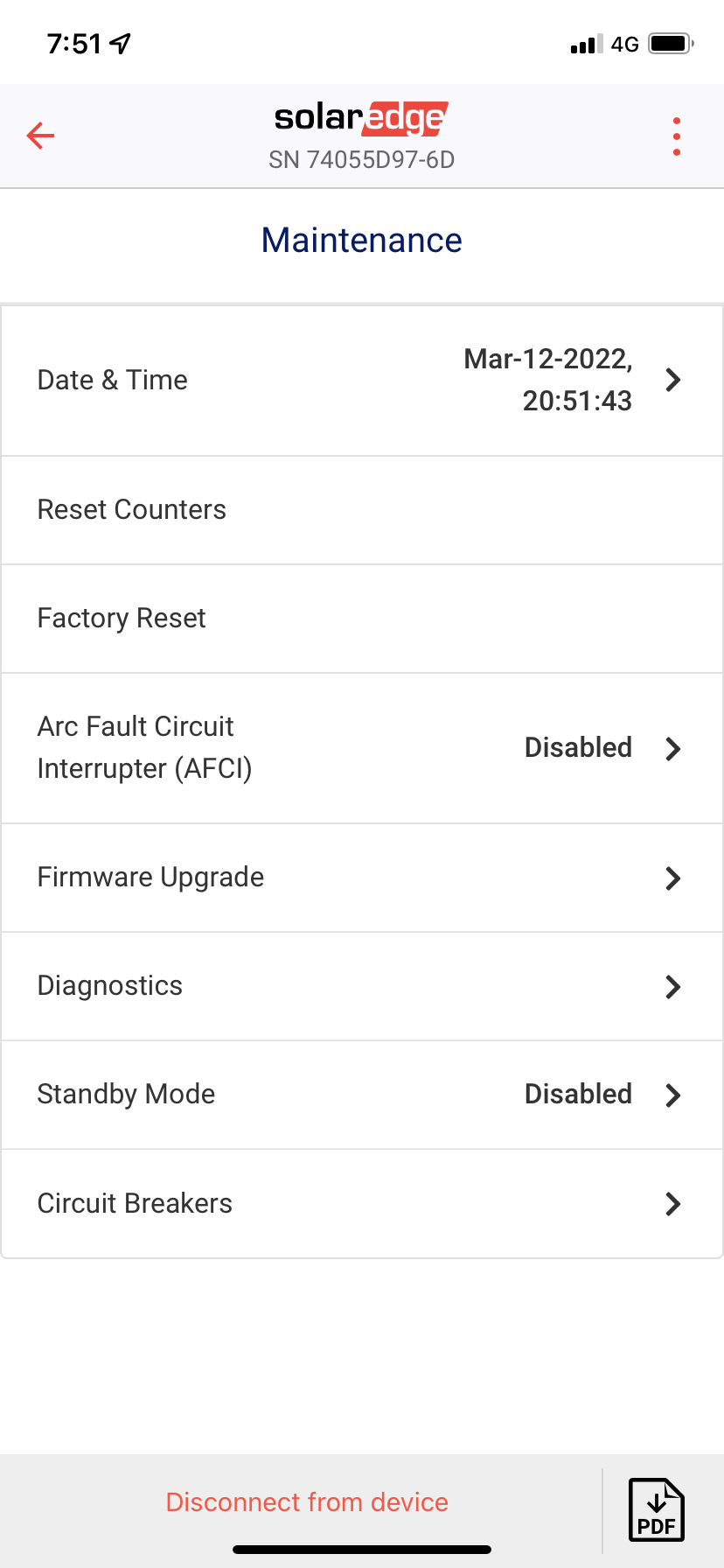

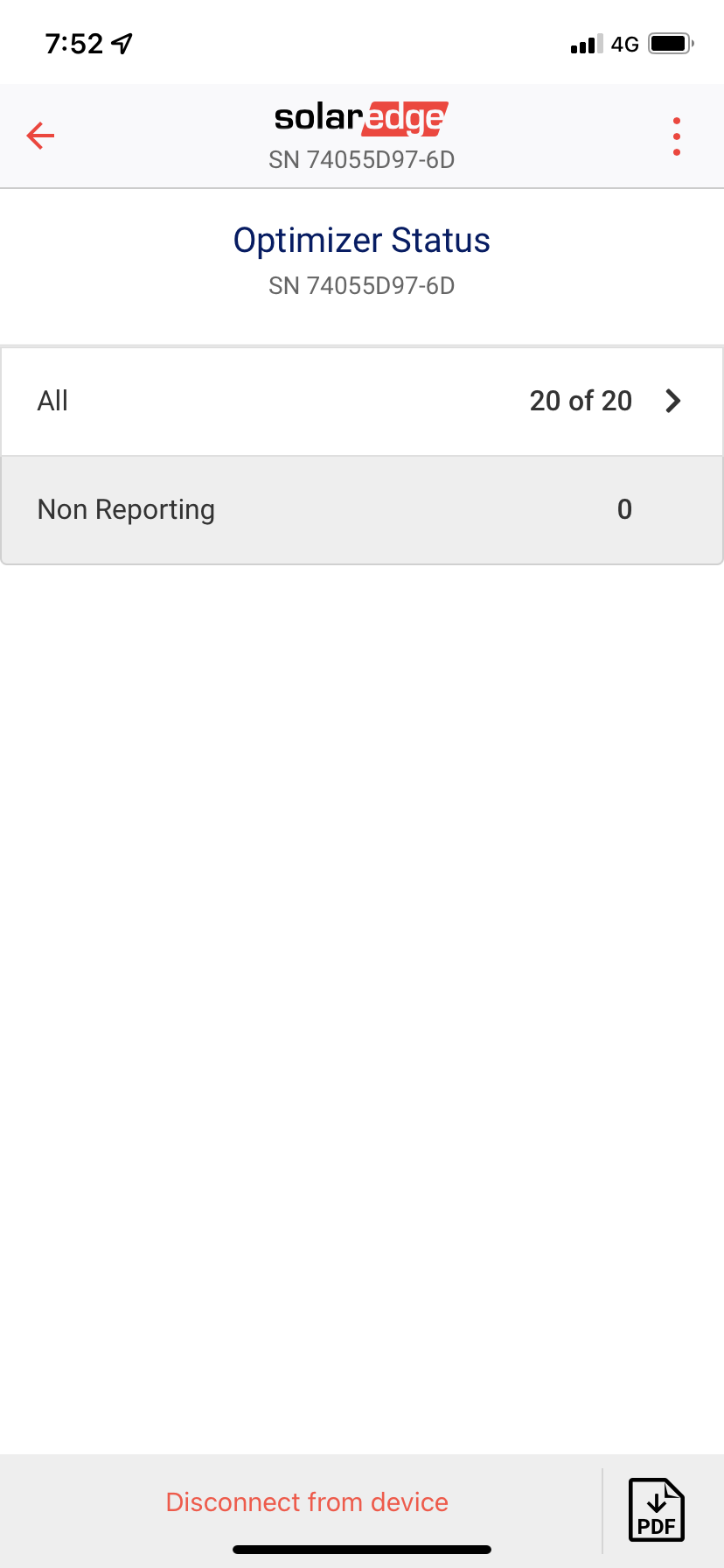

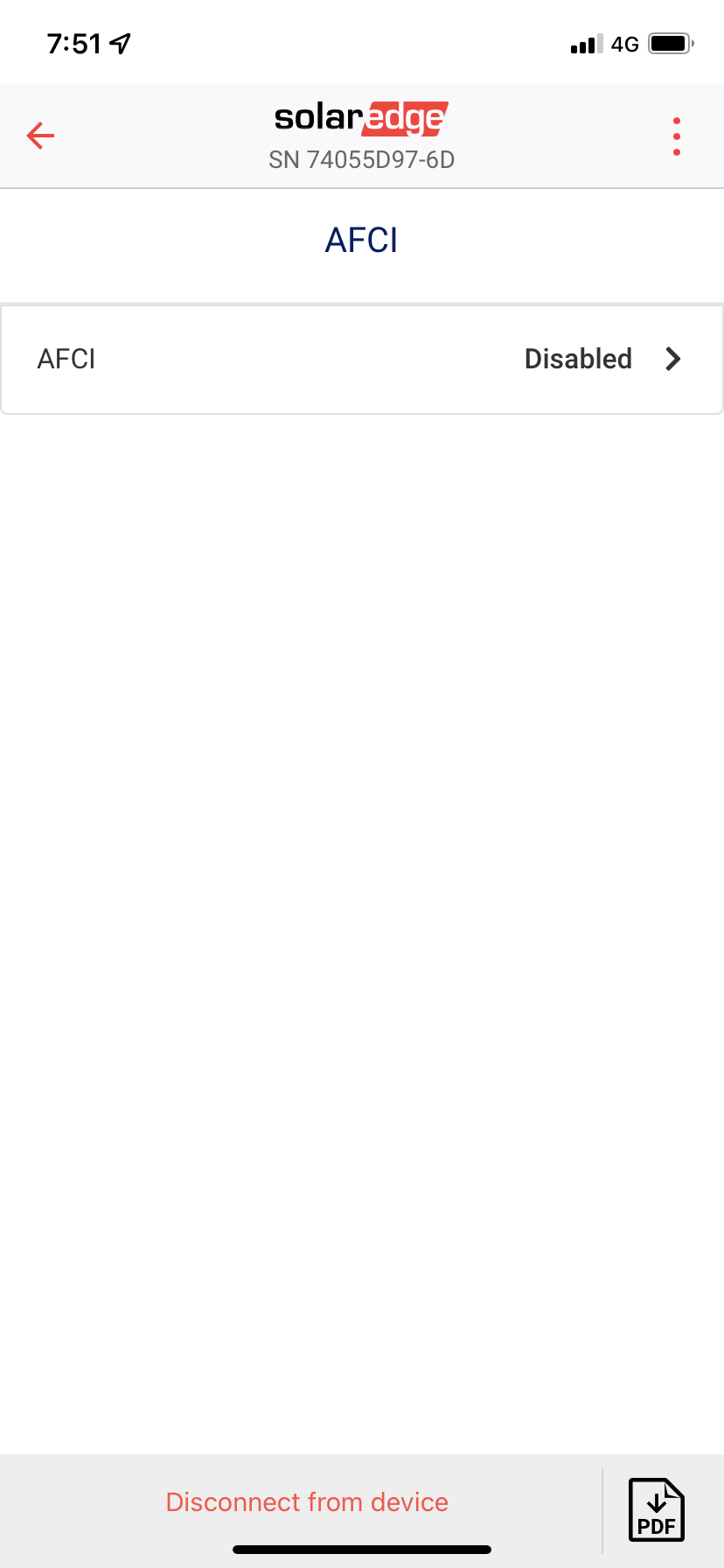

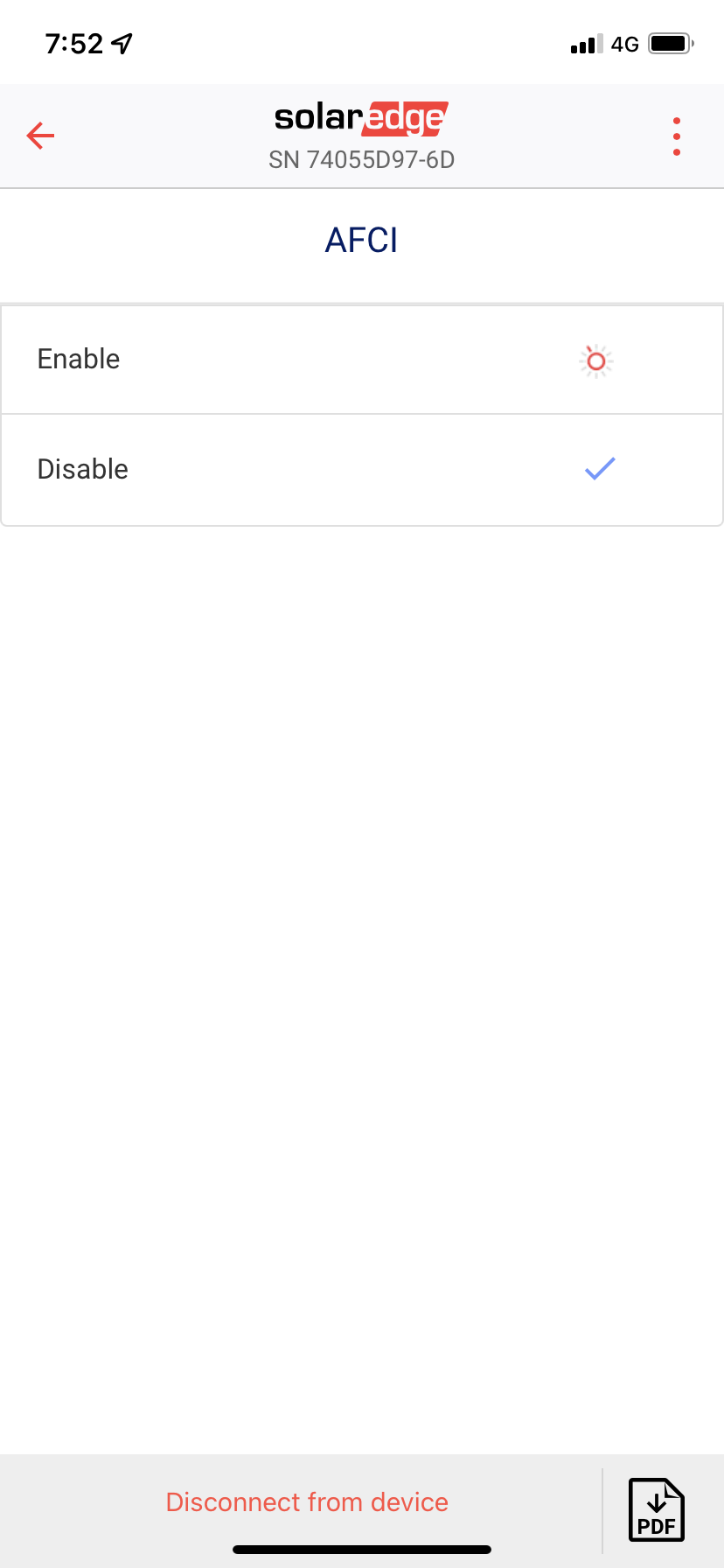

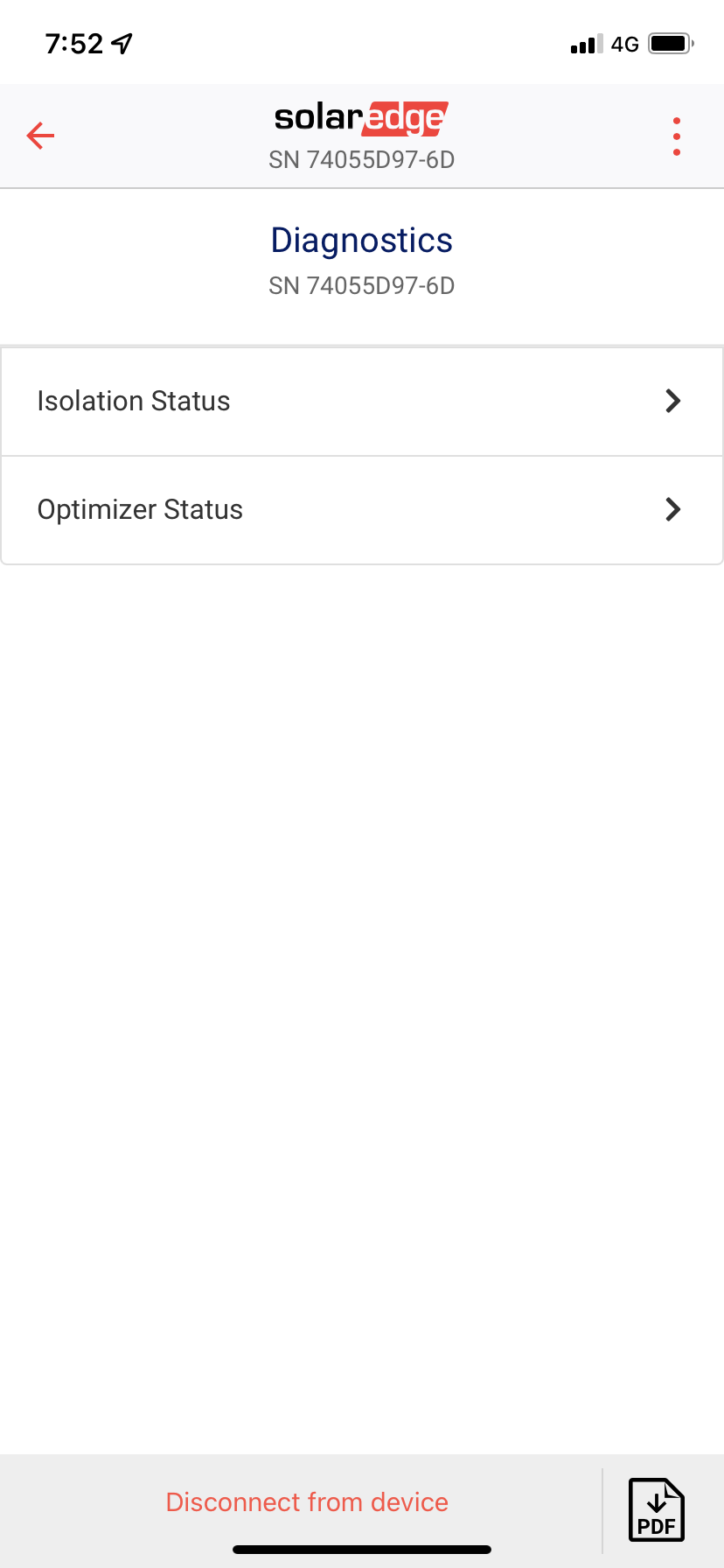

Setapp walk through, how to pair the optimisers

There are two communcation types to configure in Setapp:

  1. Monitoring comms - for internet connectivity so the monitoring system works (NECESSARY)
  2. Site Comms - for local connections between devices like inverters/meters (optional)
Monitoring Comms (NECESSARY)

Note: Only Energy Hub inverters have a wifi antenna in the box - you will likely need to add a wifi antenna to your BoS with Genesis or 3PH residential inverters - alternatively, it's much faster and easier to use our Wireless Gateway kit.

Site Comms (optional)

Step 3 - Map the Roof

Step 4 - Adding Homeowner access

Additional information & Troubleshooting
